Technical Specifications

COCKPIT

Handlebars

Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

SeatPost

Specialized Alloy, Single Bolt, 30.9mm

Tape

Specialized Trail Grips

Saddle

Body Geometry Power Sport, steel rails

Stem

Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise

FRAMESET

Seat Binder

Specialized Alloy 34.9

Frame

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

DRIVETRAIN

Bottom Bracket

Shimano, BB52, Threaded

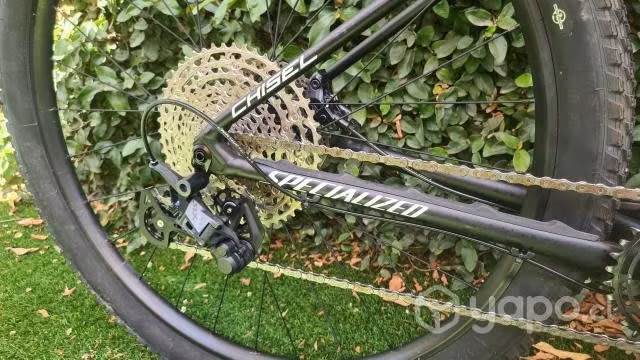

Rear Derailleur

Shimano SLX M7100, SGS, 12-speed

Chain

Shimano Deore M6100, 12spd w/quick link

Cassette

Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t

Crankset

Shimano MT511, 32T chainring

Shift Levers

Shimano SLX, M7100, 12spd

Chainrings

32T

WHEELS

Inner Tubes

Presta, 60mm valve

Rear Tire

Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"

Rims

Specialized Alloy, hookless, Tubeless ready, 25mm inner width

Front Tire

Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"

Rear Hub

Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline

Front Hub

Shimano MT410-B, Centerlock 28h, 15x110 Boost

Suspension

Fork

RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)

BRAKES

Front Brake

Shimano M6100, 2-piston caliper, hydraulic disc

Rear Brake

Shimano M6100, 2-piston caliper, hydraulic disc
